Home Products 1088 Cast Steel Three Piece Design Ball Valve, Class-150 (Screwed)
Salient FeaturesDes
Salient FeaturesDes
COD not available
ZOLOTO by CB TRADING

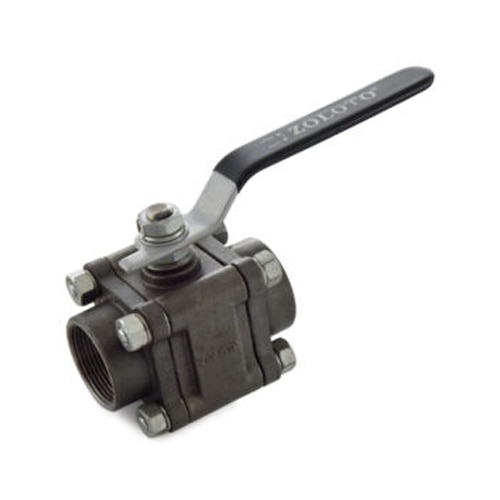

1088 Cast Steel Three Piece Design Ball Valve, Class-150 (Screwed)

Share with
Share this on :

Description

Product details

Salient Features Design Standard BS EN ISO 17292 (BS 5351). Screwed Female Ends to BSPT / NPT / Socket Weld. Reduced Bore, Three Piece Design. Superb in Quality and Performance. Test Pressure (Hydrostatic) : Shell : 31 kg/cm²g (440psig) Seat : 21kg/cm²g (300 psig) Seat (Steam) : 10.55 kg/cm²g (150 psig) Maximum Working Temperature : 220°C

Keywords

Other Products

Related Products

Salient Features Design Standard IS 5290. Confirming to Type A specification. Screwed in Bonnet having instantaneous coupling with single outlet. PTFE Gland Packing for longer life and smooth operation of stem. Large flow way area to get full flow of water. Leakage proof by virtue of elastomer seat. Smooth operation of blank cap for quick mounting of water pipe. Life long rust free service. Test Pressure (Hydrostatic) Shell : 21 kg/cm²g (300 psig) Seat : 14 kg/cm²g (200 psig) Maximum Working Temperature : 110°C
View Details
1093 Bronze Landing (Fire Hydrant) Valve (Flanged)
Salient Features Design Standard IS 5290. Confirming to Type A specification. Screwed in Bonnet having instantaneous coupling with single outlet. PTFE Gland Packing for longer life and smooth operation of stem. Large flow way area to get full flow of water. Leakage proof by virtue of elastomer seat. Smooth operation of blank cap for quick mounting of water pipe. Life long rust free service. Test Pressure (Hydrostatic) Shell : 21 kg/cm²g (300 psig) Seat : 14 kg/cm²g (200 psig) Maximum Working Temperature : 110°C
View Details
1093A Stainless Steel S.S 304 Landing (Fire Hydrant) Valve (Flanged)
Salient Features Screwed Female Ends to IS 554 / BS 21 / ISO 7. Most ideal for sensitive and consistent fluid regulation. Diaphragm-less, Piston Type. Piston-operated, hence more reliable than conventional diaphragm type PRV. A rugged body, compact-sized, easy to install. Provided with Premium Quality Nitrile Rubber ‘O’Rings. Demands low maintenance and virtually noiseless. Most of the critical working components have a distinct edge of being hot brass forged. The facility provided to install a Pressure Gauge of 1/4″ BSP size to gauge the critically relevant Outlet Pressure. Designed to suit every application requiring accurate pressure ratings. All ‘O’ rings are of superior food-grade material, hence ensuring absolute zero health hazard. Design Standard BS 7350. Precise double regulation. Tamper-proof setting with a lock shield. PTFE sealing disc to ensure a proper shut-off. Provided with Inlet / Outlet pressure test cocks. Facilitates system design hence saving energy. Handwheel Operated. Easy to install and set. Accentuates systematic commissioning of the plant for an optimal operation. Test Pressure (Hydrostatic) Shell : 24 kg/cm²g (340 psig) Maximum Operating Pressure (Hydrostatic): 16 Bar at an ambient temperature up to 45°C Maximum Working Temperature: 220°
View Details
1087 Bronze Double Regulating Balancing Valve (Screwed) With Nozzle
